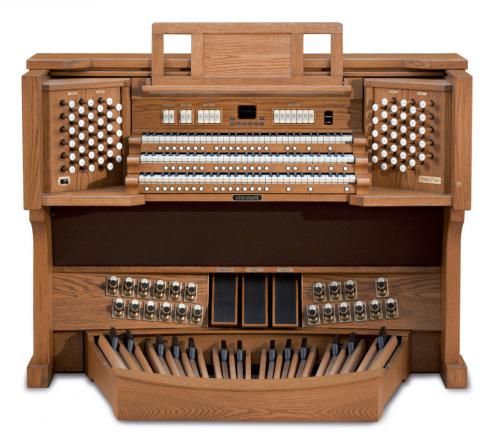

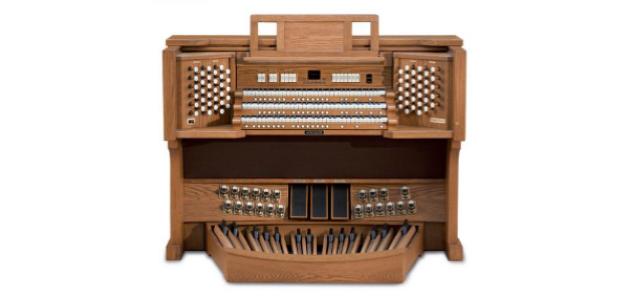

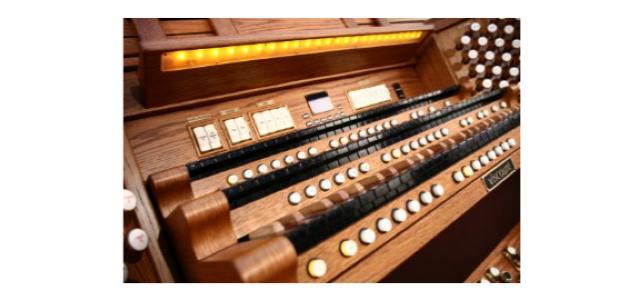

Viscount Unico 500
Unico 500 er et stort orgel på 3 manualer med 56 klingende klassiske registre i 8 forskelige stilarter:
Flere hundrede ekstra registre
Barok 1, Barok 2, Romantisk og Symfonisk
3 manualer og et 32-toners pedalspil
Registertræk med lysindikation
Udvidet betjening med fodbetjente kontrolknapper
Pris: fra DKr 295.850,-
Kan leveres med Viscount højttalere eller Danhild Hybrakustiske lydgivere
Nedenfor kan du opleve 2 videoer med et Unico 500
| Technology | PHYSIS® PHYSICAL MODELING |
| Manuals | 3 x 61 note "tracker touch" keyboards, with velocity control for MIDI and Orchestra sections. Optional with wooden keys |
| Pedalboard notes | 32 note straight, straight concave, radiating concave |
| Register Control | Drawknob |
| Internal Amplification | 6 x 60 Watt + 1 x 100 Watt, 7 channels internal amplification system |
| Speakers | 13 |
| Expression Pedals | 2 |
| Crescendo Pedal | yes |
| STOPS & VOICES | |
| Pedal | 12 |
| Choir | 12 |
| Great | 15 |
| Swell | 17 |
| Orchestral Voices | 7 |
| Total Voices | 56 classic, 5 orchestral, hundreds of voices in the internal sound bank |
| Styles | 4 Preset + 4 User. Hundreds Sound Styles can be loaded and/or stored from/to internal memory and Pen Drive |
| Alternative Voices | Selectable additional sound for each Stop |
| Orchestral Alternative Voices | Selectable additional sound for each Stop |
| General Pistons | 10 |
| Selection of memories with toe piston | Yes |
| Divisional Pistons | 6 |
| Memory Bank | 16 |
| Total Memories | 160 General, 384 Divisional, tens of thousands with Pen Drive and in internal memory |
| Piston Sequencer | Prev - Next Pistons and Toe Studs |
| Return to Handset Registration | Individual HR for General and Divisional Pistons |
| ACCESSORIES | |
| Toe Pistons | 22 |
| Console On - Ext. Out Speakers On | Can be programmed as Main Out On and Antiphonal On |
| Cancel | Yes |
| Automatic Pedal | Yes |
| Enclosed Piston | Yes |
| Couplers | 6 With Stops, Pistons and Toe Studs |
| Transposer | -6/+5 |
| General and Reverb Volume | With Rotary Potentiometers |
| MIDI enable | Yes |
| Organ Solo | Solo Coupler |
| Orchestra and Midi Sustain | With Expression Pedal Switch |
| ON/OFF Switch with key | Yes |
| Remote Control | Optional Radio no directive 50 mt distance Remote Control with built in 2x16 display |
| Display | 128 x 64 dots Graphic with Backlight |
| Voice Parameters | Stop by stop adjustable voice parameters |
| Divisional Volume | Separate for each Division |
| Tremulant | 3 Separately for each manuals Depth and Speed adjustable |
| Reverb | 8 Types |
| Adjustable Ensemble Effect | Adjustable |
| Air Pressure Effect | Proportional to the active Voices |
| Tracker keyboard Effect | Yes |
| Historic Temperaments | Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975, Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable "Tonic" Key Note |
| Keyboards Inversion | Yes |
| Piston Combine | Great/Pedal Divisional Piston Combine |
| Programmable Output Routing | Stop by stop adjustable Windchest layout |
| External Output Volume Control | 13 (21) indipendent out volume control |
| 5 Bands Equalizer on External Outputs | 13 (21 con scheda opzionale) equalizzatori indipendenti |
| 5 Bands Equalizer on Internal Amplification | Yes |
| Midi Programmable | Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity: progammables |
| Sequencer | Sequencer interattivo con funzione Overdubbing, controllabile anche con telecomando opzionale |
| Demo Songs | Yes |
| File Management | Copy, Load, Save, Rename, Delete etc. under Linux Operating System |
| Lock Organ | With Password |
| INTERFACE | |
| Midi In, Out, Thru | Yes |
| Stereo Headphone Output | Yes |
| Stereo Aux Input | Yes |
| Mic. Input | With Gain Control |
| External Output | 12+1, (20+1 when replacing standard output board with optional expansion board) |
| USB to PC | For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and External Routing, etc. (optional) |
| USB for Pen Drive | Yes |
| Dimensions (WxHxD) | cm 178 x 131.5 x 117 - 70.07" x 51.77" x 46,06" |
| Dimensions without music desk and pedalboard (WxHxD) | cm 178 x 131.5 x 78 - 70.07" x 51.77" x 30.70" |
| Cabinet Features | Elegant Wooden Console Moldings, Elegant Wooden Lighted Music Rack, Wooden Roll Top with Key-Lock, Bench with Music Storage Shelf |
| Colours / Finishes | Light oak real wood veneer , Medium oak real wood veneer, Dark oak real wood veneer |
| Weight | kg 292 / Lbs 643.74 |
